RPB Radex Airline Filter
More Filtration, Capacity, Versatility
RPB's Range of optional equipment means the RPB Radex Airline Filter can be customized to meet individual breathing requirements, whether it be Grade D, AS1715, EN12021, or ISO8573.1 Class 1,2, 3. Ask for more details

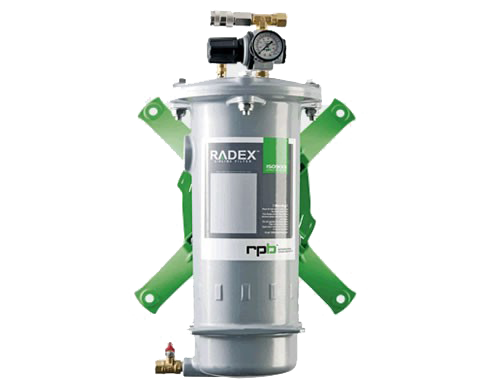

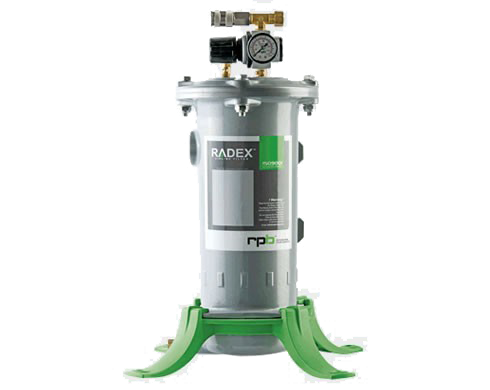

Mouting System
The RADEX AIRLINE FILTER™ has a unique twist and lock mounting system making it easy to mount in either the floor or wall mounting positions. No bolts are required. Simply place in position and turn to lock.
Auto Drain Valve
Upgrade the Radex Airline Filter ™ to include the optional auto drain valve, continuous moisture removal from the filter housing to increase filter cartridge lifespan.
6 Stage Filter Cartridge
The large capacity 6 stage filter cartridge removes moisture and particulates to 0.5 micron and odor from the compressed air stream, providing clean breathable air.
Filter Options
- 04-900 1-2 Outlet Filter unit
- 04-906 6 outlet filter unit
Parts
No |
Description |
Part No |
| 1 | Quick Disconnect Coupler | 04-911 |
| 2 | 3/8" Tee | 04-912 |
| 3 | 3/8" Cap | 04-913 |
| 4 | Pressure Regulator | 04-914 |
| 5 | Pressure Gauge | 04-915 |
| 6 | Pressure Relief Valve 125 psi | 04-916 |
| 7 | 3/8" Hex Nipple | 04-917 |
| 8 | Lid | 04-918 |
| 9 | O-Ring (Set of 2) | 04-919 |
| 10 | Filter Cartridge | APF 3100 |
| 11 | Bolt, Nut Washer (Set of 4) | 04-920 |
| 12 | Body | 04-921 |
| 13 | Drain Tap | 04-922 |
| 14 | Base Mount | 04-923 |
| 15 | Auto Drain Unit | 04-924 |
| 16 | Micro Mist Filter 1/2 | 04-925 |
| 17 | 1" x 1/2 Reducing Nipple | 04-926 |
| 18 | Main Line Pre Filter | 04-927 |
| 19 | Brass Elbow | 04-928 |
